Description

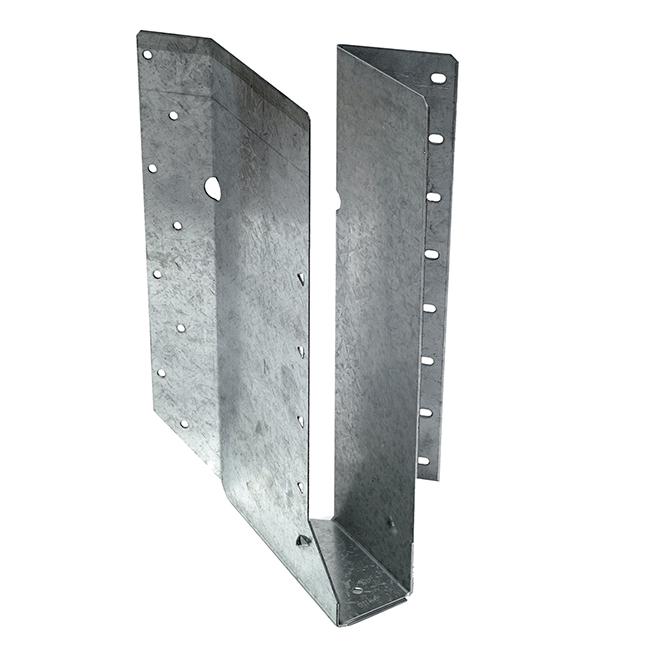

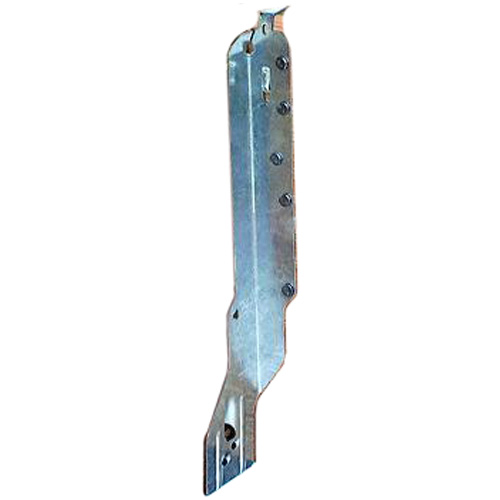

Construct a building with structural integrity using the Simpson joist hanger. To ensure a secure connection, it renders support to the underneath rafter and beams. Steel construction makes the galvanized steel joist hanger strong. It measures 2 9/16 in x 11 7/8 in.
- Install with 0.148 in x 3 in nails in the header and #8 x 1-1/4 in wood screws in the joist
- Galvanized (G90) for extra corrosion resistance
- Securing the carried I-joist is simple, requiring only one or two screws into the bottom flange through the seat of the hanger
- The optional triangle nail holes may be used for increased uplift
- These hangers cannot be modified but will accommodate a skew of up to 5°
- Seat width: 2-9/16 in
- Height: 11-7/8 in
- Actual joist size: 3 in x 11-7/8 in
- Made from 18-gauge steel
Product specifications
Type
Top mount joist hanger
ACQ Approved
No
Actual Length(cm)
30.4546
Actual Length(in)
11.99
Actual Length(mm)
304.546
Actual Width(cm)
17.85493
Actual Width(in)
7.0295
Actual Width(mm)
178.5493
Common Measurement (W x L)
3-in x 11-7/8-in
Finish
G90 galvanized
Gauge
18
Manufacturer Color/Finish
None
Material
Steel
Materials Connected
Wood to wood
Maximum Size
3 in x 11-7/8 in
Members
N/A
Minimum Size
3 in x 11-7/8 in
Nails Required
Assortment
Package Quantity
1
