Description

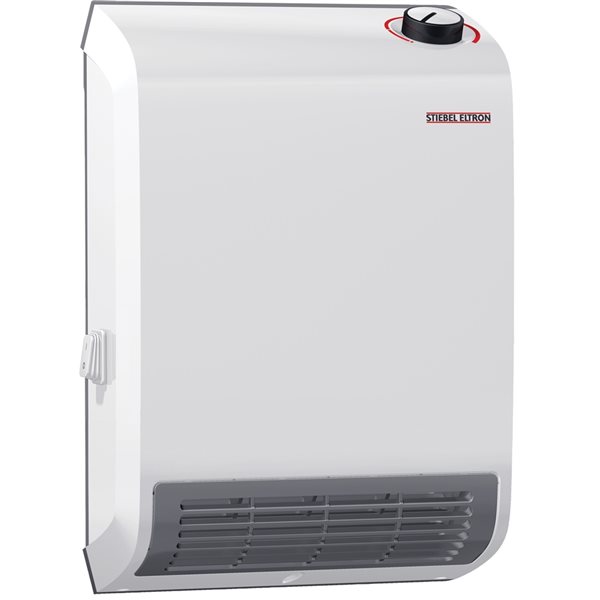

Designed in Germany, this quiet fan heater quickly warms an area or maintains a comfortable temperature. Perfect for both retrofit and new construction, the European downdraft design heats a space evenly. The built-in fan is extremely quiet in operation at only 49.7 DB. A thermostat with an adjustable knob for setting temperature is located on the right side of the unit. In rooms larger than 215-sq. ft., the heater can be operated through a conventional wall-mounted room thermostat. It is designed with a frost protection setting. The lowest thermostat setting will maintain above freezing temperatures in an appropriately sized space. The external casing is made of stove-enamelled sheet steel and its sides from plastic. This heater is designed to have its components recycled at the end of its useful life.
- It must be hard-wired to 120 V with a 15 A breaker with 12 AWG wire
- It outputs 1500 W and draws 12.5 A
- Heat output is 5118 BTU/hour
- Glass-reinforced polycarbonate radial-type fan is extremely quiet, with a noise level of only 49 dB(a)
- Features ceramic positive temperature coefficient (PTC) heating element
- Typical applications are bathrooms, basements, offices, playrooms, 3-season porches, cabins, campers or RVs, and mobile homes
- ETL listed for compliance with CSA and UL safety standards in the US and Canada
- See warranty for complete details of the 3-year warranty against defects in workmanship and materials under normal use
Product specifications
Maximum Btus (btu)
5118
Element Warranty Parts
36
Overall Width(in)
10.88
Amperage
12.5
Control Board Warranty Parts (months)
36
Grille Height(in)
2
Maximum Wattage (watts)
1500
Minimum Mounting Height(in)
18.62
Overall Length(in)
5.13
Base Warranty Parts
36
Grille Depth(in)
4.93
Heating Area (sq. Feet)
150
Grille Length(in)
10.62
Overall Height(in)
15.75
Weight (lb)
5.5
Automatic Shut-Off
No
Grille Material
Steel
Package Contents
Heater, Installation Manual, Mounting Hardware
Number of Heat Settings
Variable
Energy Saving Setting
No
Manufacturer Color/Finish
White
Type
Heater fan
Timer
No
Color/Finish Family
White
Warranty
3-year limited
Series Name
CK
Thermostat Type
Bi-metal
Use Location
Indoor
Voltage Rating
120
