Description

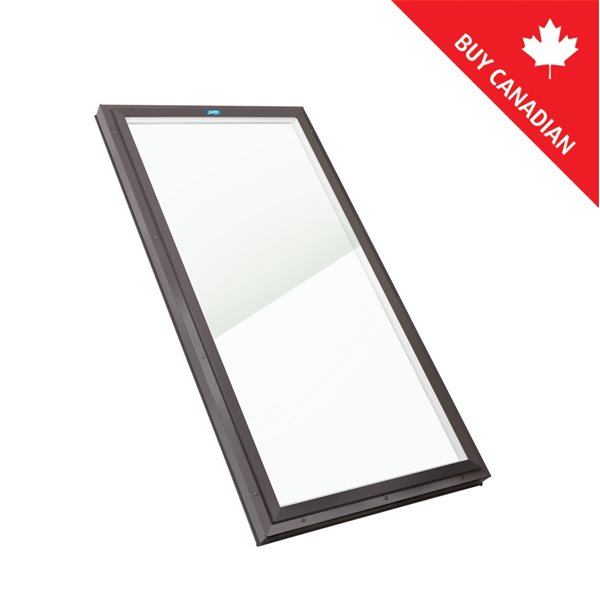

This curb mount skylight is the preferred skylight choice in Canada for any type of roof; primarily for use on tile, shingle or wood shake roofs. This model is the optimum choice for long-lasting, trouble-free installation. Other skylight types include built-in wood curbs for double the cost. Ideal for rooms that are south facing or require softer light and it provides the ideal balance of solar heat gain control and visible light transmission.
- Columbia Skylights utilizes maintenance-free white vinyl base frame with an integrated 4-sided gutter to collect any condensation caused by Canada’s extreme climate.
- Designed for inside curb dimension of 34.5-in x 34.5-in (outside curb 37.5-in x 37.5-in)
- Recommended use of aluminum flashing kit model FKCM40
- Durable, low maintenance exterior aluminum frame with grey baked enamel
- LoE3 bronze tempered glass offers the ideal balance between solar heat gain control and visible light transmission and is perfect for south-facing skylights
Product specifications
Outside Frame/Curb Width(in)
37.5
Actual Height(in)
40
Actual Width(in)
40
Outside Frame/Curb Height(in)
37.5
Actual Length(in)
3.25
Rough Opening Height(in)
34.5
Rough Opening Length(in)
5.5
Rough Opening Width(in)
34.5
Type
Skylight
ENERGY STAR Certified Northern Zone
Yes
Hardware Included
No
Glazing Type
Tempered
Shade/Blind Color
N/A
ENERGY STAR Certified Southern Zone
Yes
Installation Type
Curb mount
Shade/Blind Power Source
N/A
Shade/Blind Style
N/A
Remote Control Included
No
Blinds Included
No
Color/Finish Family
Grey
Exterior Material
Aluminum
ENERGY STAR Certified North/Central Zone
Yes
ENERGY STAR Certified South/Central Zone
Yes
Warranty
20-year limited
Interior Frame Material
Vinyl
Frame Color/Finish
Grey
Glass Tint
No
Glass Type
Tempered glass over tempered glass
Shade/Blind Operation
N/A
App Compatibility
No
Flashing Included
No
Glass Insulation
Low-E argon
Skylight Style
Fixed
