Description

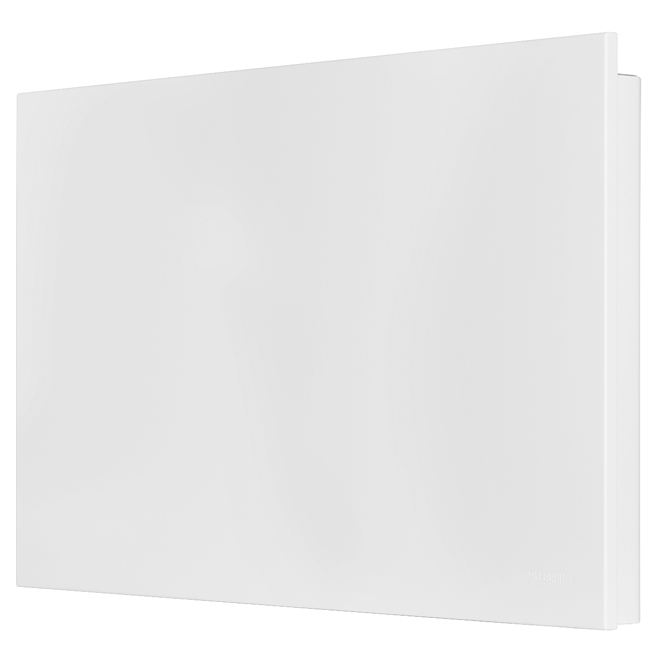

A quiet unit with a discreet design and high efficiency, the Stelpro Mirage electronic convector features a shallow cabinet and a front panel made entirely from 20-gauge steel. The cabinet’s height improves the chimney effect, promoting better convective motion. The convector comes with a lower air intake and an upper air discharge. Two stainless steel tubular sheathed elements insulated with nylon sleeves reducing expansion and contraction noises. Its modern and elegant look suits virtually any room. 1000/750 W model with built-in thermostat.
- Blends in with any decor
- Sturdy one-piece front panel
- Totally quiet
- Adapts to multiple markets
- Built-in thermostat
Product specifications
Amperage
4.2
Automatic Shut-Off
Yes
Base Warranty Labor(Months)
60
Base Warranty Parts(Months)
60
Color/Finish Family
White
Control Board Warranty Labor(Months)
36
Control Board Warranty Parts(Months)
36
Element Warranty Labor(Months)
36
Element Warranty Parts(Months)
36
Energy Saving Setting
No
File/Certification Number
050134 2811 03
Grille Depth(cm)
9.144
Grille Depth(in)
3.6
Grille Depth(mm)
91.44
Grille Height(cm)
45.72
Grille Height(in)
18
Grille Height(mm)
457.2
Grille Length(cm)
59.69
Grille Length(in)
23.5
Grille Length(mm)
596.9
Grille Material
Steel
Heating Area(ft2)
100
Heating Area(m2)
9.29
Manufacturer Color/Finish
White
Maximum BTUs (BTU)
3413 BTU
Maximum Wattage(Watts)
1000
Minimum Mounting Height(cm)
10.16
Minimum Mounting Height(in)
4
Minimum Mounting Height(mm)
101.6
Number of Heat Settings
Variable
Overall Height(cm)
45.72
Overall Height(in)
18
Overall Height(mm)
457.2
Overall Length(cm)
59.69
Overall Length(in)
23.5
Overall Length(mm)
596.9
Overall Width(cm)
9.144
Overall Width(in)
3.6
Overall Width(mm)
91.44
Package Contents
Instruction manual
Rough Opening Depth(cm)
0.0
Rough Opening Depth(in)
0
Rough Opening Depth(mm)
0.0
Rough Opening Height(cm)
0.0
Rough Opening Height(in)
0
Rough Opening Height(mm)
0.0
Rough Opening Length(cm)
0.0
Rough Opening Length(in)
0
Rough Opening Length(mm)
0.0
Safety Listing
CSA safety listing
Series Name
Mirage
Thermostat Type
Digital
Timer
No
Type
Heater fan
Use Location
Indoor
Voltage Rating
208/240
Warranty
5-year limited
Weight(kg)
8.0514
Weight(lb)
17.75
